Overview

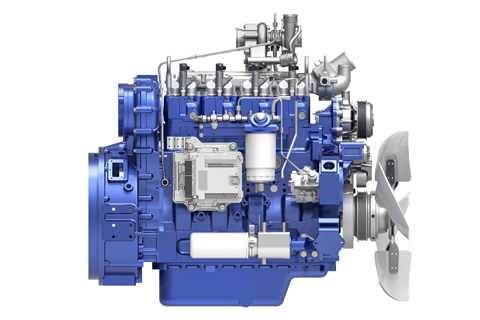

Weichai WP4 series engines for construction machinery. Displacement: 4.5L. Power range: 60-82kW. Application: skid-steer loaders, loader-diggers and other small machinery.
Power Rating
| Maximum Power |
60 kW |
| Minimum Power |
82 kW |
| Maximum Torque / Speed |
(285-430)/（1300-1600） N.m / r/min |
Emission Standards
General
| Series |
WP4 |
| Fuel |
Diesel |
| EngineType |
Inline 4-cylinder, four-stroke engine |
| Cylinder Number |
4 |
| Valve Number |
2 |
| Bore |
105 mm |
| Stroke |
130 mm |
| Displacement |
4.5 L |
| Aspiration |
Turbocharged and non-intercooled |
| Compression Ratio |
18:1 |
| Combustion System |
Mechanical pump |
Engine Dimensions
| Length |
1004 mm |
| Width |
555 mm |
| Height |
1027 mm |
| Weight - Net Dry |
560 kg |
Technology roadmap
- Mechanical pump. Low or no emission requirements.
Air filter system
- Patented "Type 93 dust collecting filter” of Weichai delivers first-stage primary filter efficiency up to 93%, extends filter replacement cycle and reduces premature wear failure rate of engine.
Cooling system
- Hyperboloid fan and high-flow pump; low noise level and low power consumption.
Long maintenance period
- Extra-long oil replacement interval: 500h, reducing use cost.
Environmental adaptability
- Meeting use in the environment of -35°C~50°C.
