Overview

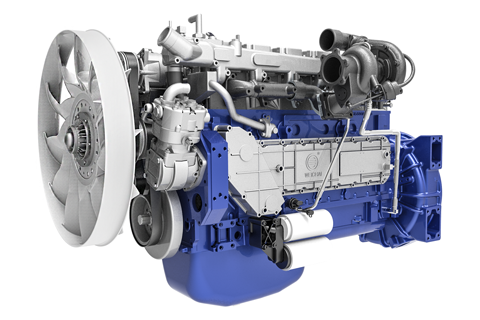

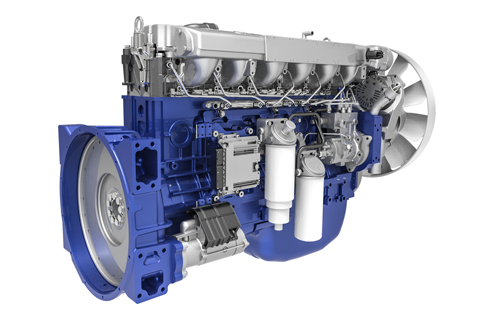

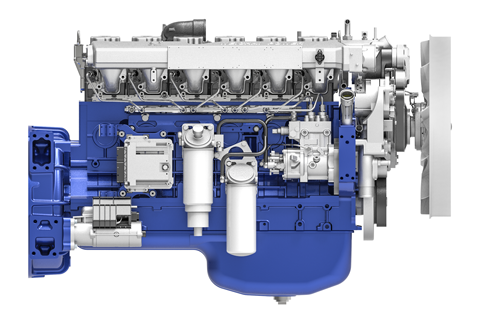

WD10 series engines are flagship products of Weichai for construction machinery. Displacement: 9.726L. Power range: 162-199kW. Euro Stage II emission standard.
Power Rating
| Maximum Power |
199 kW |
| Minimum Power |
162 kW |
| Maximum Torque / Speed |
1100/（1400-1600） N.m / r/min |
Emission Standards
General
| Series |
WD10 |
| Fuel |
Diesel |
| EngineType |
Inline 6-cylinder, four-stroke engine |
| Cylinder Number |
6 |
| Valve Number |
2/4 |
| Bore |
126 mm |
| Stroke |
130 mm |
| Displacement |
9.726 L |
| Aspiration |
Turbocharged and intercooled |
| Compression Ratio |
17:1 |
| Combustion System |
Mechanical pump |
Engine Dimensions
| Length |
1540 mm |
| Width |
656 mm |
| Height |
1208 mm |
| Weight - Net Dry |
875 kg |
Technology roadmap
- Mechanical pump. Euro Stage II emission standard or no emission requirement.
Fuel filter system
- Three-stage fuel filter shows high adaptability to fuel quality variation and improves reliability.
Fuel system
- Direct injection in cylinders improves combustion state and combustion efficiency, and effectively reduces engine fuel consumption, vibration and noise.
Intake system
- Air filter technology of special "Type 93 dust collecting filter" of Weichai delivers first-stage primary filter efficiency up to 93%, and reduces premature wear failure rate of engine “quadruple” kit (cylinder liner, piston, piston rings and piston pin) by more than 90%.
Cooling system
- Hyperboloid plastic fan effectively reduces engine radiation noise level while increasing heat dissipation efficiency, making driving more comfortable and secure.
Maintenance period
- Extra-long oil replacement interval: 500h, reducing use cost.
Environmental adaptability
- Meeting use in the environment of -25°C~50°C and altitude more than 5,000 meters.
